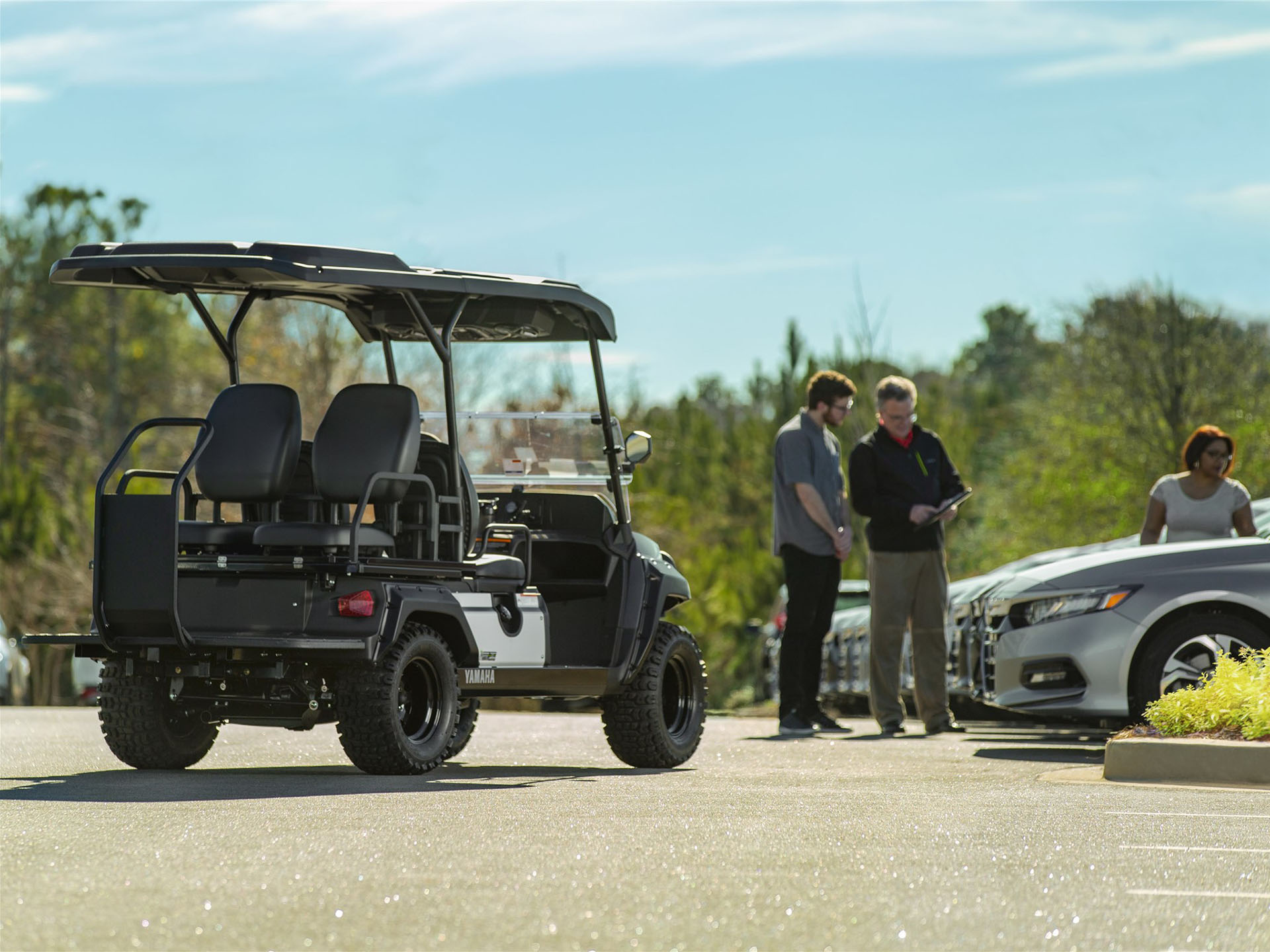

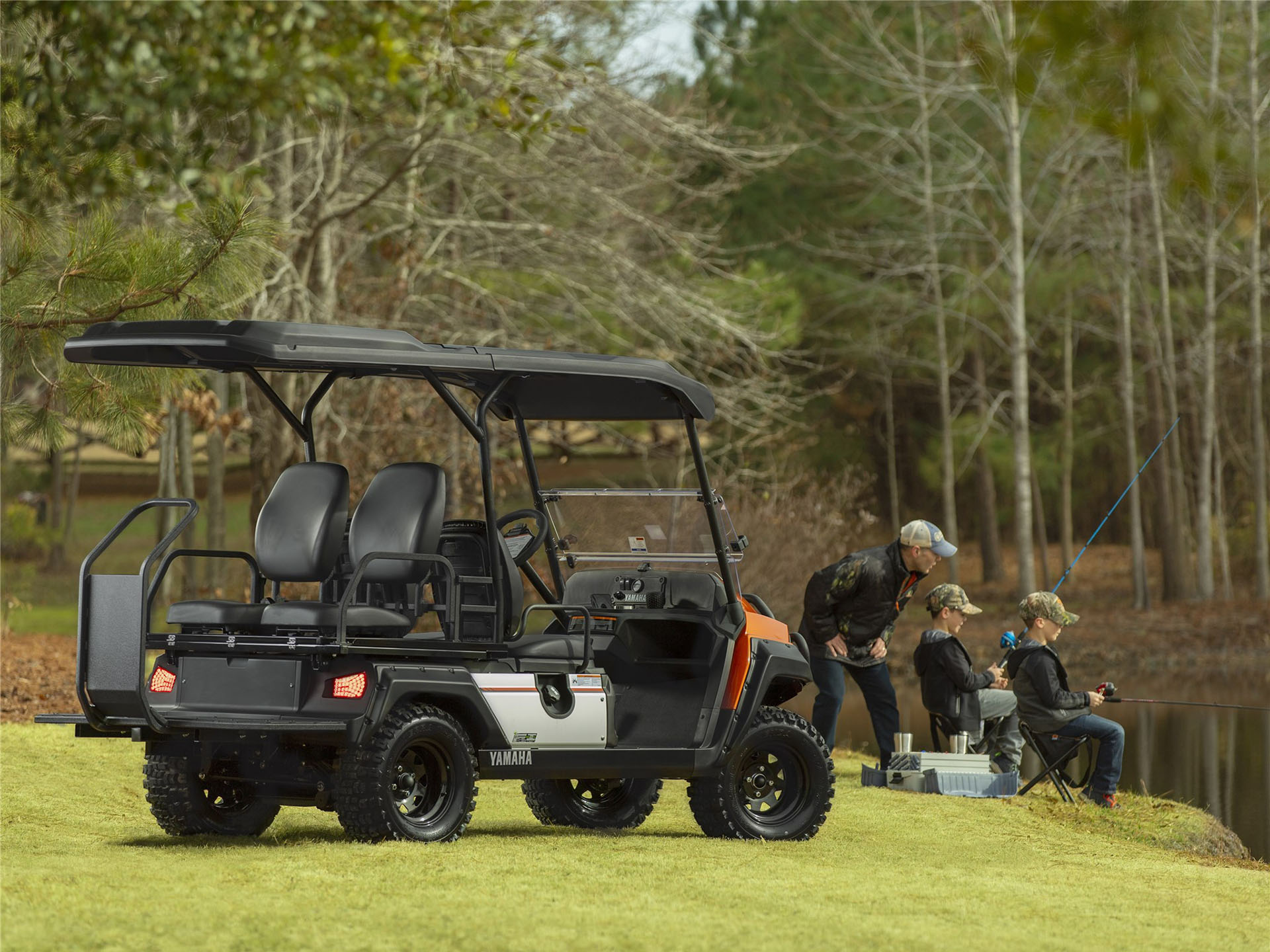

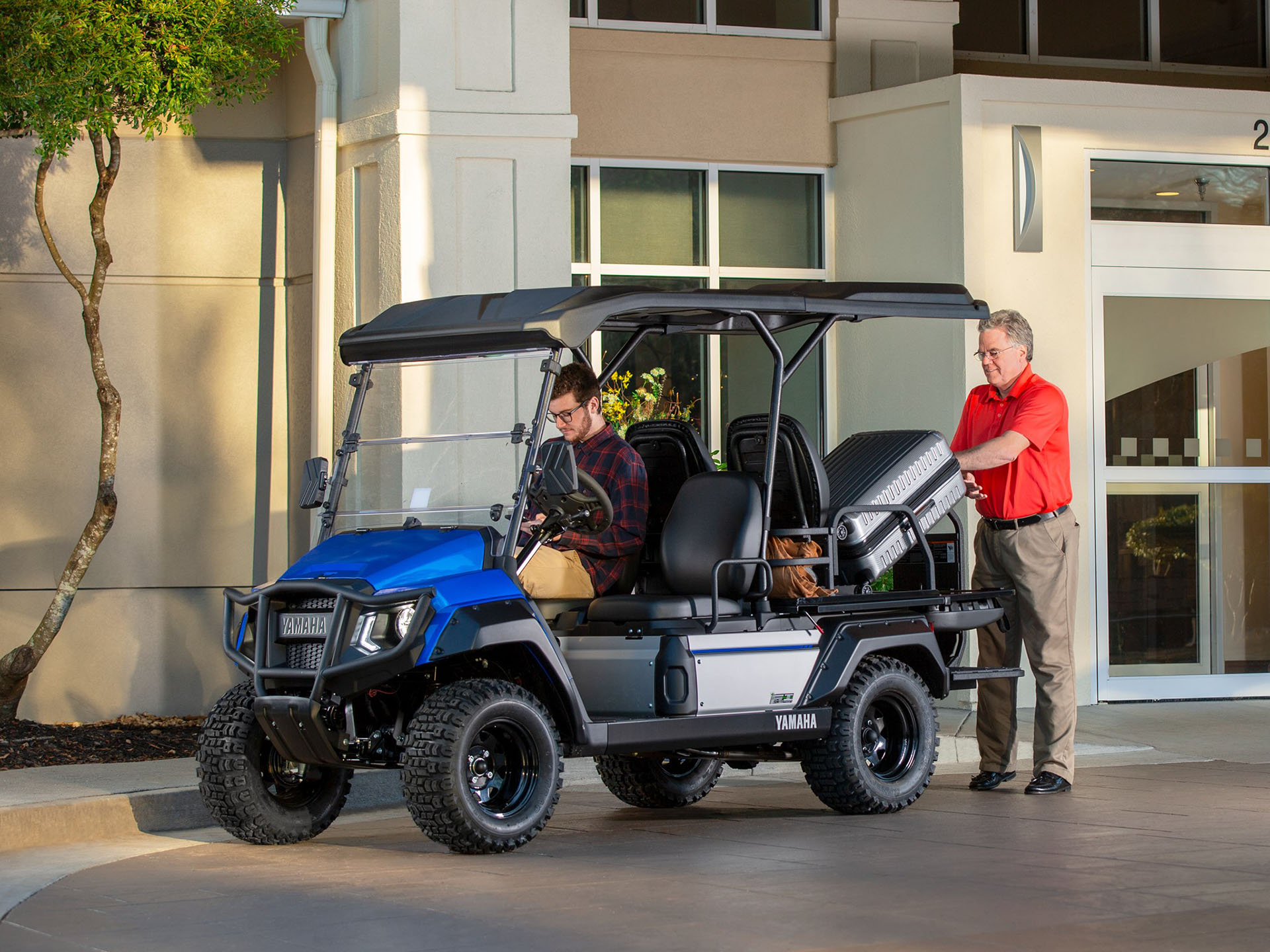

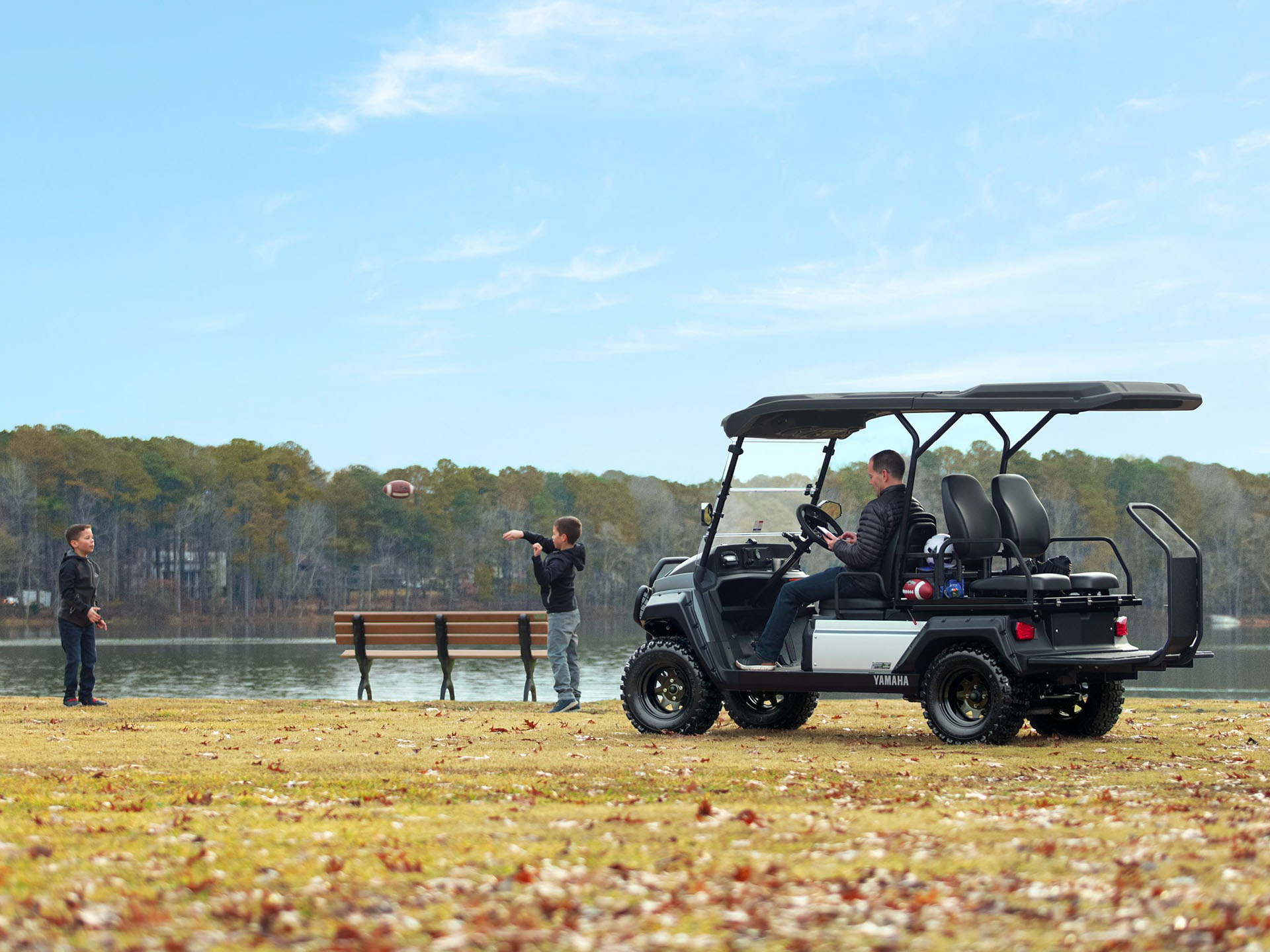

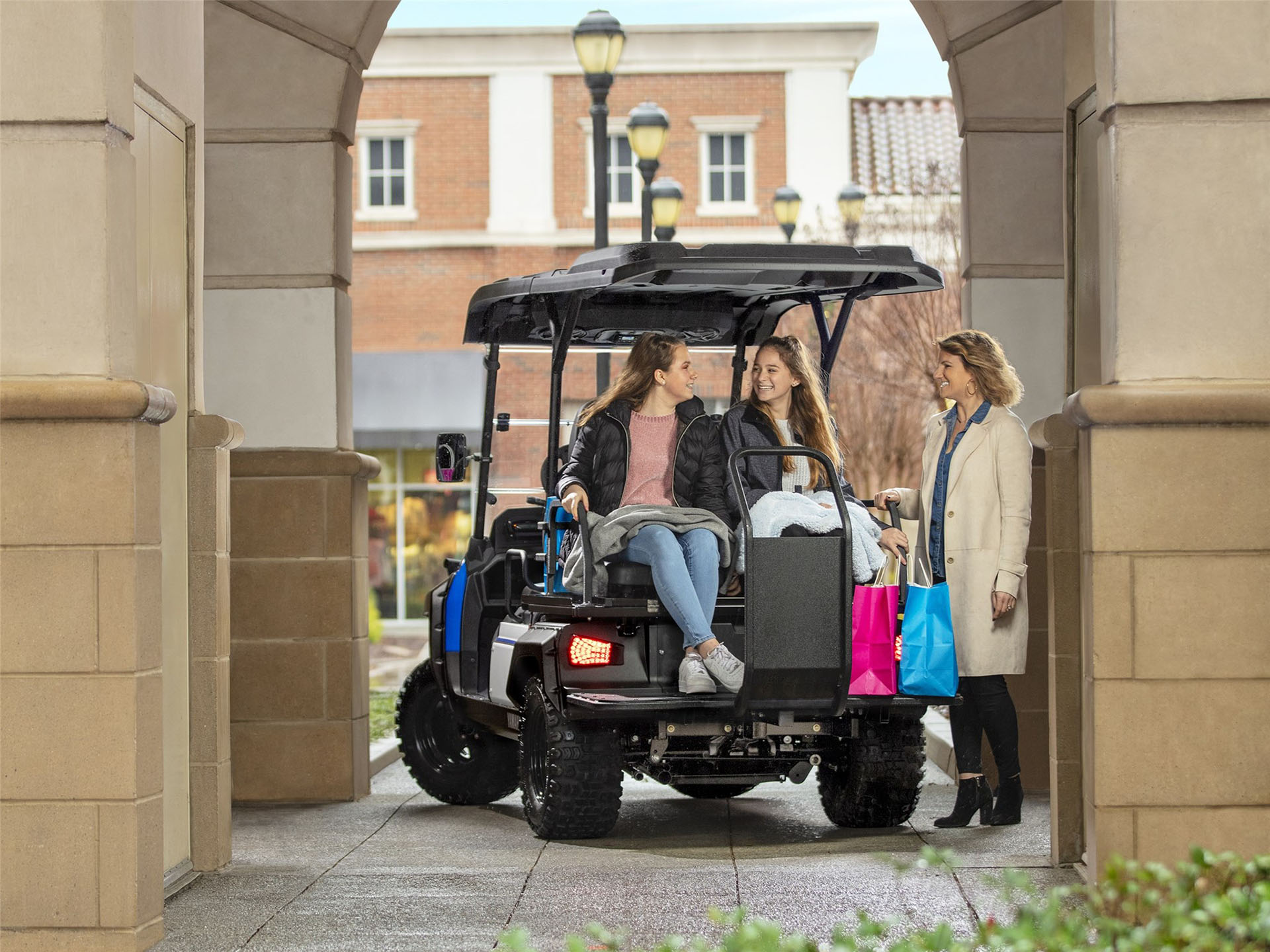

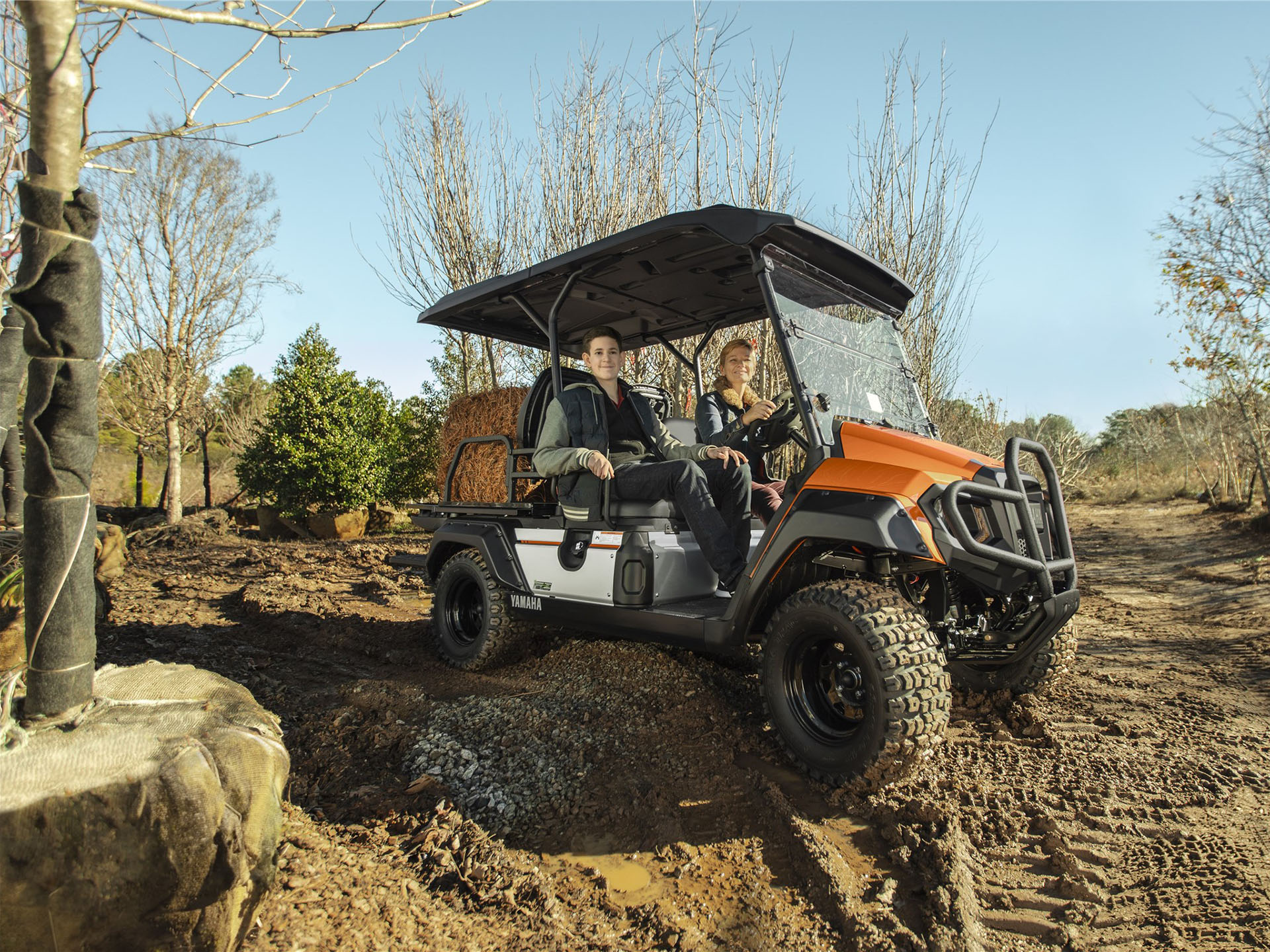

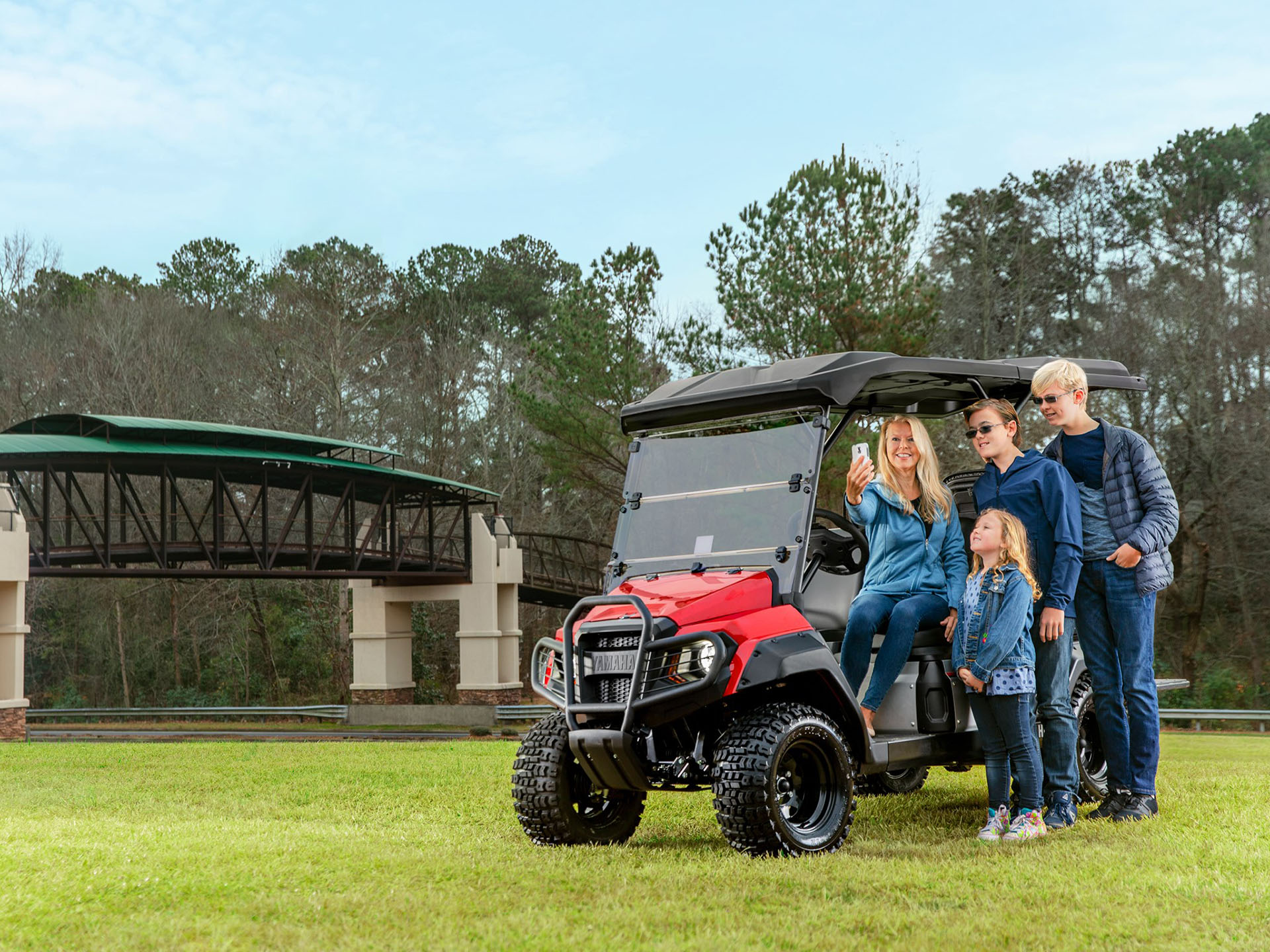

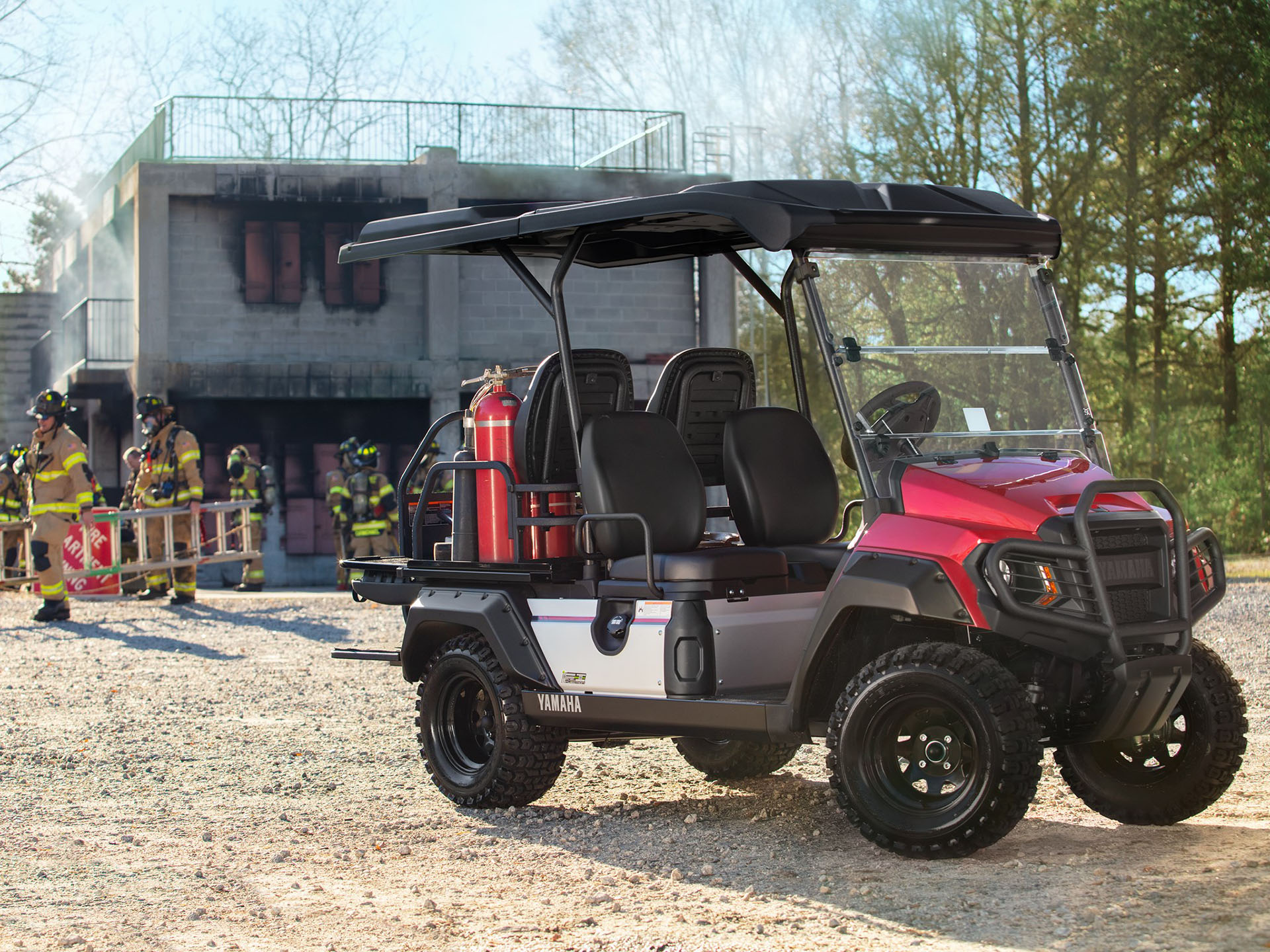

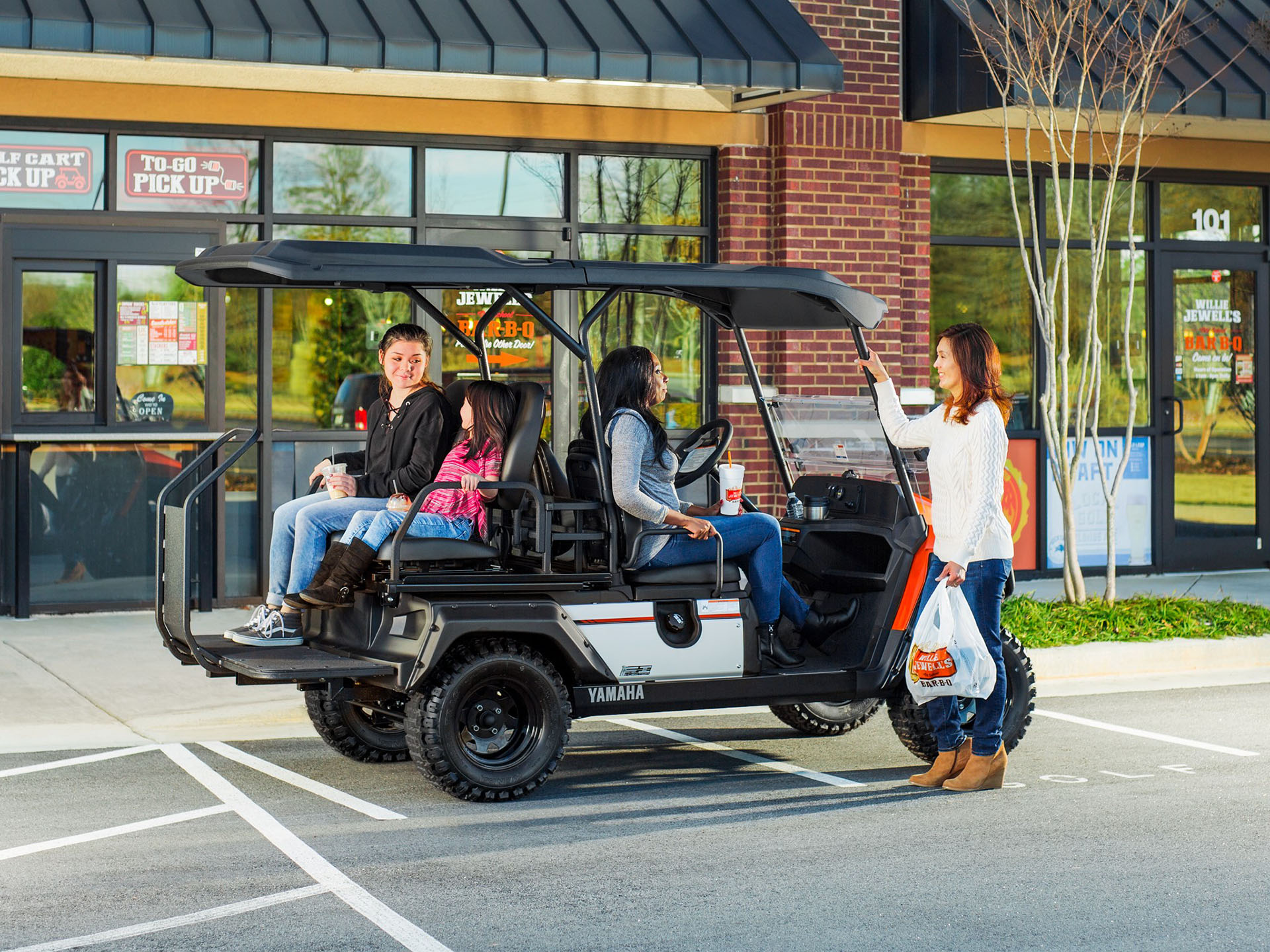

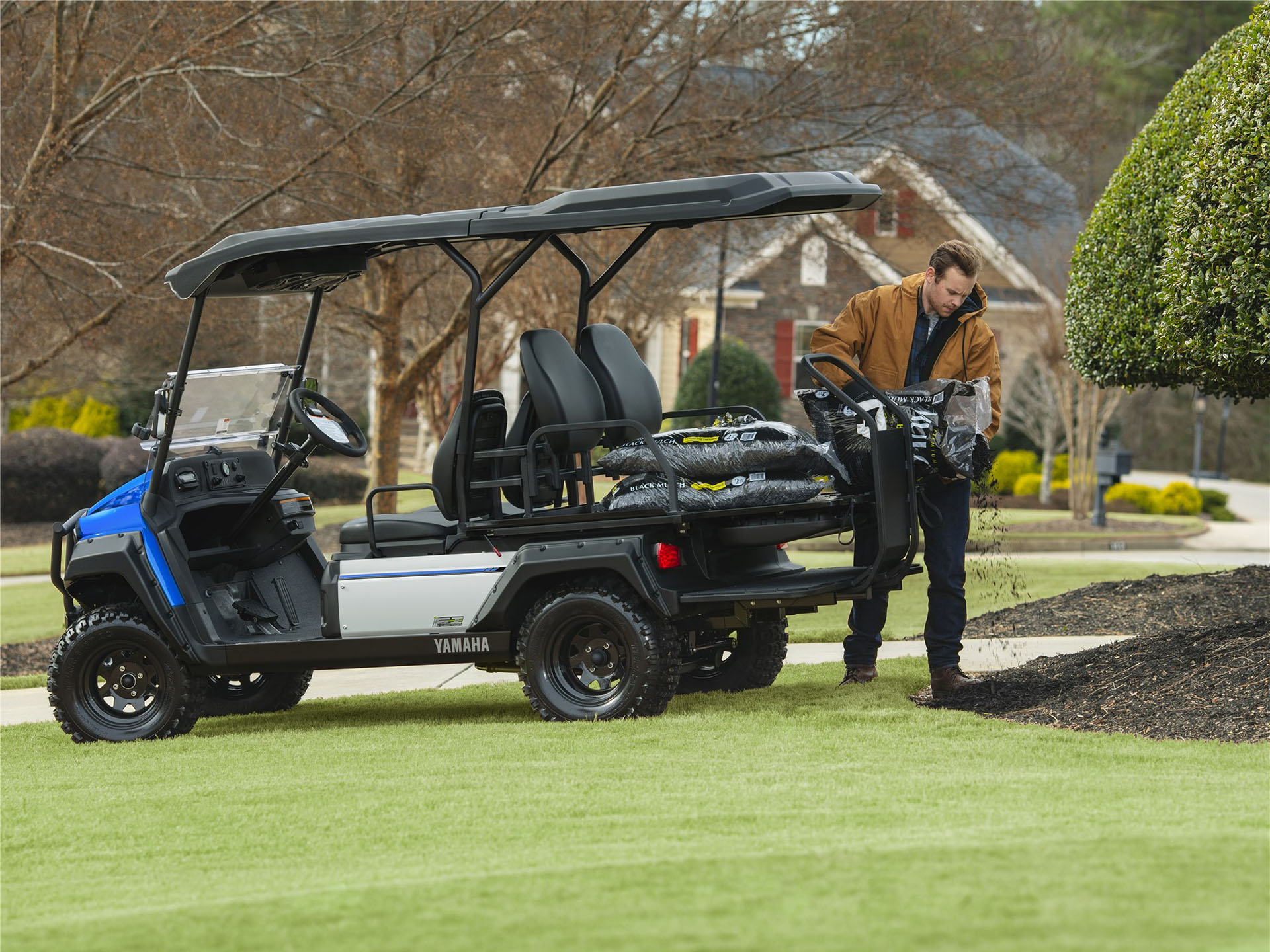

2024 Yamaha UMAX Rally 2+2 EFI in Saint Maries, Idaho — 2024 Yamaha UMAX Rally 2+2 EFI

View Details

Specs
Features

General Information

Manufacturer

Yamaha

Model Year

2024

Model

UMAX Rally 2+2 EFI

Model Code

Color

Glacier

Engine

Yamaha-built, low-emission single cylinder 60° incline OHV

Cooling system - Forced cooling

Yamaha-built, low-emission single cylinder 60° incline OHV

Cooling system - Forced cooling

Displacement

402 cc

Carburetion

Fuel system - Electronic Fuel Injection

Starter

Generator with pedal start system

Fuel Capacity

5.2 U.S. gal. (20 l)

Lubrication

Splash-style positive oil

Oil capacity - 1.16 U.S. qt. (1.1 l, 1,100 cc)

Splash-style positive oil

Oil capacity - 1.16 U.S. qt. (1.1 l, 1,100 cc)

Air Filter

Air cleaner - Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge

Fuel Type

Gas

Measurements

Length

Overall - 134.37 in. (341.3 cm)

Height

Overall (with suntop) - 77.20 in. (196.1 cm)

Overall (without suntop) - 57.48 in. (146 cm)

Overall (with suntop) - 77.20 in. (196.1 cm)

Overall (without suntop) - 57.48 in. (146 cm)

Width

Overall - 53.54 in. (136 cm)

Weight

Dry - 1,321 lb. (599 kg)

Wheelbase

77.28 in. (196.3 cm)

Ground Clearance

Minimum - 5.94 in. (15.1 cm)

Operational

Brakes

Self-adjusting mechanical, front and rear wheel drum

Suspension

Front - Tru-Trak II™ fully independent automotive-style strut

Rear - Unit swing arm with heavy duty coil springs over hydraulic shock absorbers

Front - Tru-Trak II™ fully independent automotive-style strut

Rear - Unit swing arm with heavy duty coil springs over hydraulic shock absorbers

Tires

Front - 23 x 10.5-12 4-ply Monitor K389

Rear - 23 x 10.5-12 4-ply Monitor K500

Front / Rear wheel tread - 41.26 in. (104.8 cm)

Front - 23 x 10.5-12 4-ply Monitor K389

Rear - 23 x 10.5-12 4-ply Monitor K500

Front / Rear wheel tread - 41.26 in. (104.8 cm)

Seating

Capacity - 4 persons

Color - Black

Suntop color - Black

Capacity - 4 persons

Color - Black

Suntop color - Black

Towing Capacity

1,200 lb.

Turning Radius

Minimum - 13 ft. (3.98 m)

Steering

Self-compensating double reduction helical rack-and-pinion

Speed

Maximum forward - 15 mph (24.1 km/h)

Maximum reverse - 18 mph (11.2 km/h)

Maximum forward - 15 mph (24.1 km/h)

Maximum reverse - 18 mph (11.2 km/h)

Other

Additional Colors

Bluestone

Carbon

Coral Red

Cyan

Glacier

Onyx

Titan

Bluestone

Carbon

Coral Red

Cyan

Glacier

Onyx

Titan

Frame

HybriCore™ chassis features a robotic welded automotive ladder-style steel frame protected with a multi-step full-immersion phosphate treatment, electro-deposition epoxy-based coating, and an electrostatic applied polyester / urethane powder topcoat

Body - Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane

Warranty

Standard 2-year limited vehicle

The Better Ride

IMPACT-RESISTANT FRONT WINDSHIELD: Work in confidence with a sturdy, durable polycarbonate windshield.
POWERFUL 402CC ENGINE: Built to be strong, reliable, and resilient, even for your toughest job of the day.
AUTOMOTIVE STYLE DASH: Completely redesigned for the modern professional.
UNDER HOOD STORAGE COMPARTMENT: House all of your necessities in a sizable storage area, designed for convenience and effortless accessibility.
LUXURY BUCKET SEATS: Derived from our award winning Viking® Side-by-Side, you can enjoy a comfortable ride with support that will last your entire work day.
SIDE FILL GAS TANK: Makes for a quick, efficient fill-up.
EASY ACCESS ENGINE COMPARTMENT: Comfortably reach the engine compartment without having to remove the dump bed.
DUAL USB PORTS: Allow players to conveniently charge devices on both sides of the vehicle, a win-win for drivers and passengers.

The Better Ride

IMPACT-RESISTANT FRONT WINDSHIELD: Work in confidence with a sturdy, durable polycarbonate windshield.
POWERFUL 402CC ENGINE: Built to be strong, reliable, and resilient, even for your toughest job of the day.
AUTOMOTIVE STYLE DASH: Completely redesigned for the modern professional.
UNDER HOOD STORAGE COMPARTMENT: House all of your necessities in a sizable storage area, designed for convenience and effortless accessibility.
LUXURY BUCKET SEATS: Derived from our award winning Viking® Side-by-Side, you can enjoy a comfortable ride with support that will last your entire work day.
SIDE FILL GAS TANK: Makes for a quick, efficient fill-up.
EASY ACCESS ENGINE COMPARTMENT: Comfortably reach the engine compartment without having to remove the dump bed.
DUAL USB PORTS: Allow players to conveniently charge devices on both sides of the vehicle, a win-win for drivers and passengers.
