Engine
Yamaha-built, low-emission single cylinder 60° incline OHV
Cooling system - Forced cooling
Yamaha-built, low-emission single cylinder 60° incline OHV
Cooling system - Forced cooling
Displacement
357 cc
357 cc
Carburetion
Fuel system - Electronic Fuel Injection
Fuel system - Electronic Fuel Injection
Starter
Generator with pedal start system
Generator with pedal start system
Lubrication
Splash-style positive oil
Oil capacity - 1 U.S. qt. (1 l, 1,000 cc)
Splash-style positive oil
Oil capacity - 1 U.S. qt. (1 l, 1,000 cc)
Air Filter
Air cleaner - Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
Air cleaner - Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
Length
Overall - 161.4 in. (4,100 mm)
Overall - 161.4 in. (4,100 mm)
Height
Overall (with suntop) - 75.2 in. (1,910 mm)
Overall (without suntop) - 46.9 in. (1,190 mm)
Floor board - 13.5 in. (342 mm)
Overall (with suntop) - 75.2 in. (1,910 mm)
Overall (without suntop) - 46.9 in. (1,190 mm)
Floor board - 13.5 in. (342 mm)
Width
Overall - 47.2 in. (1,200 mm)
Overall - 47.2 in. (1,200 mm)
Weight
Dry - 1,010 lb. (458 kg)
Dry - 1,010 lb. (458 kg)
Wheelbase
131.4 in. (3,337 mm)
131.4 in. (3,337 mm)
Ground Clearance
Minimum - 4.3 in. (110 mm)
Minimum - 4.3 in. (110 mm)
Brakes
Self-adjusting, mechanical rear drum
Self-adjusting, mechanical rear drum
Suspension
Front - Tru-Trak II™ fully independent automotive-style strut
Rear - Unit swing arm with coil springs over hydraulic shock absorbers
Front - Tru-Trak II™ fully independent automotive-style strut
Rear - Unit swing arm with coil springs over hydraulic shock absorbers
Tires
Front wheel tread - 34.3 in. (870 mm)
Rear wheel tread - 38.6 in. (980 mm)
Front wheel tread - 34.3 in. (870 mm)
Rear wheel tread - 38.6 in. (980 mm)

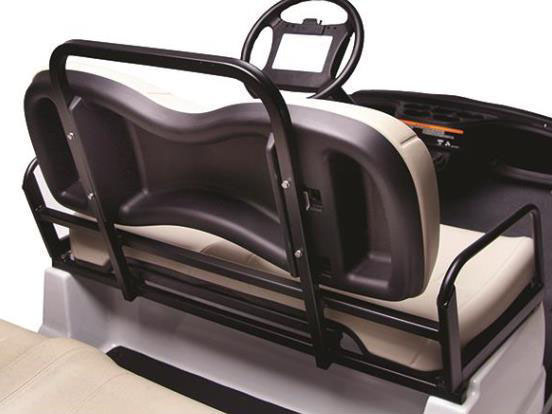

Seating
Capacity - 6 persons
Seamless, fabric-backed vinyl bonded to pure, virgin foam contoured seat cushions and matted to a warp and moisture-resistant polypropylene bottom strengthened with plated steel inserts
Color - Stone
Capacity - 6 persons
Seamless, fabric-backed vinyl bonded to pure, virgin foam contoured seat cushions and matted to a warp and moisture-resistant polypropylene bottom strengthened with plated steel inserts
Color - Stone
Turning Radius
Minimum - 18.7 ft. (5.7 m)
Minimum - 18.7 ft. (5.7 m)
Steering
Self-compensating double reduction helical rack-and-pinion, permanently lubricated with sealed, greaseless tie-rod ends
Self-compensating double reduction helical rack-and-pinion, permanently lubricated with sealed, greaseless tie-rod ends
Speed
Maximum forward - 19 mph (31 km/h)
Maximum forward - 19 mph (31 km/h)
