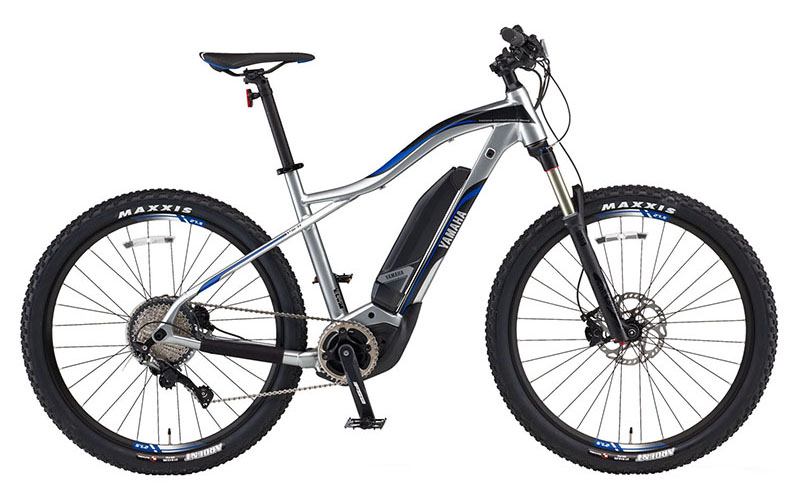

2023 Yamaha YDX-TORC - Large in Saint Maries, Idaho — 2023 Yamaha YDX-TORC - Large

View Details

Specs
Features

General Information

Manufacturer

Yamaha

Model Year

2023

Model

YDX-TORC - Large

Model Code

NA4

Color

Quicksilver / Team Yamaha Blue

Brakes / Wheels / Tires

Brakes

Shimano SLX

Brake Rotors

180 mm SM-RT68 center lock

Rims

27.5 in. welded and pinned Rim

Eyelet spoke holes

Width - 26 mm (outside), 21 mm (inside)

27.5 in. welded and pinned Rim

Eyelet spoke holes

Width - 26 mm (outside), 21 mm (inside)

Spokes

SUS304

Spoke Nipples

Brass

Front Hub

Anodized - 15 x 100 TA

Rear Hub

Anodized - 12 x 142 Shimano freehub and Yamaha bicycles speed sensor

Tires

Maxxis Ardent 27.5 x 2.25 in.

Silkworm puncture protection under tread

Tubes - PV

Maxxis Ardent 27.5 x 2.25 in.

Silkworm puncture protection under tread

Tubes - PV

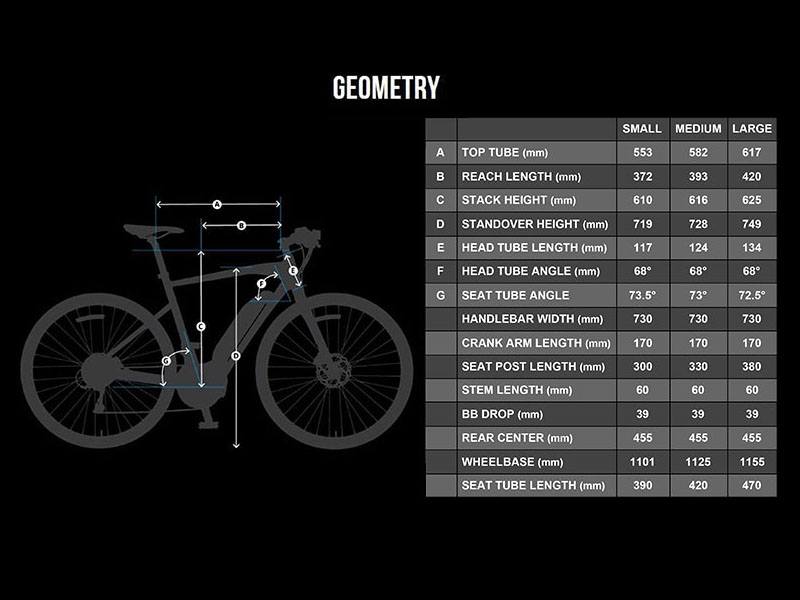

Dimensions

Length

Size - 19 in.

Top tube - 617 mm

Reach - 420 mm

Head tube - 134 mm

Size - 19 in.

Top tube - 617 mm

Reach - 420 mm

Head tube - 134 mm

Height

Stack - 625 mm

Stand over - 749 mm

Stack - 625 mm

Stand over - 749 mm

Wheelbase

1,155 mm

Drive

Shifters

Shimano SLX

11-speed

Shimano SLX

11-speed

Rear Derailleur

Shimano SLX GS Shadow +

Crankset

FSA ISIS

170 mm

FSA ISIS

170 mm

Crank Arm

FSA ISIS 170mm

Chain

KMC X11e

Cassette

Shimano SLX, 11-speed, 11 / 42T

Chainrings

Praxxis Wave 36T 104 BCD

Electrical

Motor

PW-X, center mount, ISIS splined spindle, triple sensor system with integrated speed sensor as part of rear hub

Weight - 6.83 lb.

Protective motor cover included

PW-X, center mount, ISIS splined spindle, triple sensor system with integrated speed sensor as part of rear hub

Weight - 6.83 lb.

Protective motor cover included

Battery

Yamaha 500Wh with Charge-life indicator and Self-diagnosis display

Side-exiting dock station with anti-vibration mounting plate

Yamaha 500Wh with Charge-life indicator and Self-diagnosis display

Side-exiting dock station with anti-vibration mounting plate

Battery Weight

6.61 lb.

Max Cadence support

120 rpm

Advanced Electronics

Computer control functions include: (5) Power-level control switch, stopwatch, distance units, power-level LED on / off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, 3-color LED power assist level light indicator

Watts

Rated power - 250 W (nominal), 500 W (max)

Volts

36 V

Max Torque

80 Nm

Power Modes

Support modes - ECO+, ECO, STANDARD, HIGH, EXPW

Display

Cycling function display includes - Speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)

Charge Time

4-hours

Frame

Yamaha hydroformed and butted aluminum tubing

Tapered headtube

Internal cable / housing routing

Additional mounts for external dropper post compatibility

2-bolt motor mount

12 x 142 rear spacing

Integrated speed sensor harness

Yamaha hydroformed and butted aluminum tubing

Tapered headtube

Internal cable / housing routing

Additional mounts for external dropper post compatibility

2-bolt motor mount

12 x 142 rear spacing

Integrated speed sensor harness

Fork

RockShox Recon RL 120 mm travel, 15 mm Maxle™, remote lock-out lever

Tapered aluminum steerer, 1 1 / 8 - 1 1 / 2 in.

RockShox Recon RL 120 mm travel, 15 mm Maxle™, remote lock-out lever

Tapered aluminum steerer, 1 1 / 8 - 1 1 / 2 in.

Headset

Integrated tapered headset with 30 mm headset spacers

Stem

Yamaha Alloy 4-bolt faceplate

Diameter - 31.8 mm

Length - 60 mm

Yamaha Alloy 4-bolt faceplate

Diameter - 31.8 mm

Length - 60 mm

Handlebar

Alloy 20 mm riser bar

Diameter - 31.8 mm

Width - 730 mm

Alloy 20 mm riser bar

Diameter - 31.8 mm

Width - 730 mm

Grips

Locking dual core

Seatpost

Alloy 30.9 x 380 mm with 2-bolt adjustable tilt saddle rail clamp

Collar - Quick-Release Lever 35 mm

Alloy 30.9 x 380 mm with 2-bolt adjustable tilt saddle rail clamp

Collar - Quick-Release Lever 35 mm

Saddle

Yamaha Plus Cro-Mo Rails

Tube angle - 72.5°

Post length - 380 mm

Tube length - 470 mm

Yamaha Plus Cro-Mo Rails

Tube angle - 72.5°

Post length - 380 mm

Tube length - 470 mm

Operational

Max. Speed

Support - 20 mph

Suggested Use

XC Trail, Mountain

Other

Additional colors

Quicksilver / Team Yamaha Blue

Flat Black

Quicksilver / Team Yamaha Blue

Flat Black

Includes

Hubs - Anodized, centerlock brake mount

Warranty

3-year on frame, motor, battery

Component manufacturer’s warranty is supported by Yamaha

3-year on frame, motor, battery

Component manufacturer’s warranty is supported by Yamaha

Features

PW-X DRIVE UNIT: PW-X is Yamaha’s lightest and most responsive drive unit designed to deliver a totally new mountain bike riding experience. Five levels of assist provide power for every situation in a way that feels smooth and natural. We call it “Pure Ride”, and with one ride you’ll understand why.
HYDRAULIC DISC BRAKES: YDX TORC is equipped with powerful Shimano SLX hydraulic disc brakes with 180mm rotors for strong, dependable braking in all conditions.
INTEGRATED SPEED SENSOR: Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.
MULTI-FUNCTION DISPLAY: Simple, tough and highly efficient best describes YDX TORC’s multi-function LCD display. The main LCD interface provides a host of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch.
ERGONOMIC CONTROL SWITCHES: Many times it’s the details that make a good product great. Check out YDX TORC’s ergonomic control switches. They’re large and easy to operate in all types of conditions while wearing mountain bike gloves.
YAMAHA 500WH BATTERY: Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy for your mountain bike adventures. When it comes time to replenish, you can charge the battery pack on or off the bike using the Yamaha’s high speed charger.
ROCKSHOX RECON: YDX TORC is equipped with the RockShox Recon Gold RL front fork featuring 120mm of travel, compression adjustment and remote lock out.
SHIMANO SLX SHADOW REAR DERAILLEUR: YDX TORC’s 11-speed shifting duties are handled by Shimano’s excellent SLX Shadow rear derailleur.
DROPPER POST READY: Cable housing guides are located under the top tube for external dropper post, or use the housing port located on the drive side of the downtube to route housing for an internal dropper post.
HEAD TUBE ANGLE: 68°
BB DROP: 39 mm
REAR CENTER: 455 mm

Features

PW-X DRIVE UNIT: PW-X is Yamaha’s lightest and most responsive drive unit designed to deliver a totally new mountain bike riding experience. Five levels of assist provide power for every situation in a way that feels smooth and natural. We call it “Pure Ride”, and with one ride you’ll understand why.
HYDRAULIC DISC BRAKES: YDX TORC is equipped with powerful Shimano SLX hydraulic disc brakes with 180mm rotors for strong, dependable braking in all conditions.
INTEGRATED SPEED SENSOR: Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.
MULTI-FUNCTION DISPLAY: Simple, tough and highly efficient best describes YDX TORC’s multi-function LCD display. The main LCD interface provides a host of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch.
ERGONOMIC CONTROL SWITCHES: Many times it’s the details that make a good product great. Check out YDX TORC’s ergonomic control switches. They’re large and easy to operate in all types of conditions while wearing mountain bike gloves.
YAMAHA 500WH BATTERY: Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy for your mountain bike adventures. When it comes time to replenish, you can charge the battery pack on or off the bike using the Yamaha’s high speed charger.
ROCKSHOX RECON: YDX TORC is equipped with the RockShox Recon Gold RL front fork featuring 120mm of travel, compression adjustment and remote lock out.
SHIMANO SLX SHADOW REAR DERAILLEUR: YDX TORC’s 11-speed shifting duties are handled by Shimano’s excellent SLX Shadow rear derailleur.
DROPPER POST READY: Cable housing guides are located under the top tube for external dropper post, or use the housing port located on the drive side of the downtube to route housing for an internal dropper post.
HEAD TUBE ANGLE: 68°
BB DROP: 39 mm
REAR CENTER: 455 mm
